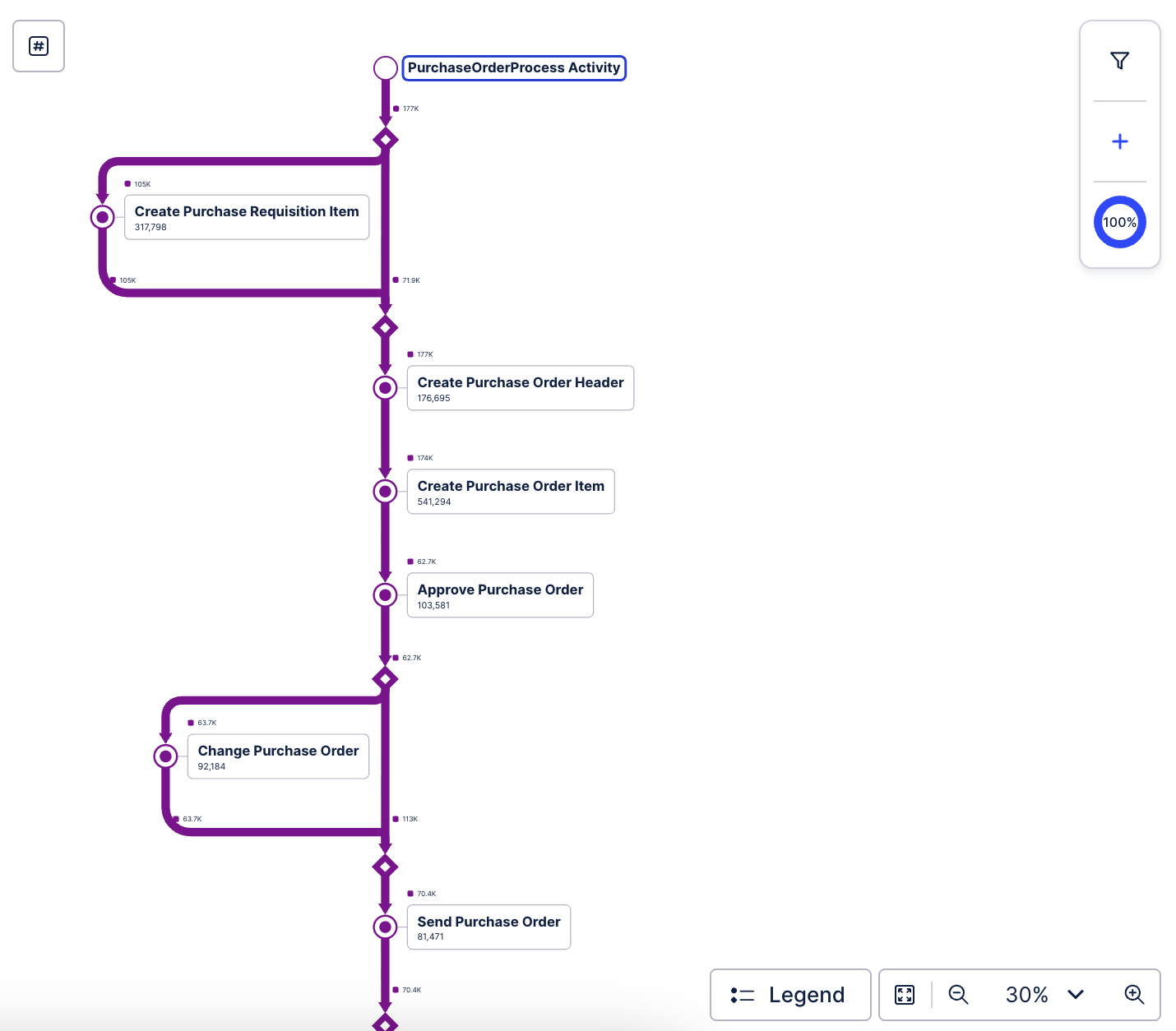

Using the process model
Searching the process model
Clck the Search icon
to the right of the process model graph.Enter your criteria in the Search field.
As you enter your search criteria, any events or objects matching your criteria are displayed and the colored squares indicate which object type it is included in.
Click any search result to go directly to that object or event in the process model.
Process model view and edit modes
In View mode, you can:
Report on data within the process model but cannot change it.
Add filters to set which objects and events are shown in the process model.
For more information, see filtering the process model.
You access Edit mode by clicking Edit mode button in the top right of the screen. In Edit mode, you can:
Mine your baseline model.
Add or remove specific object types or event types in the process model.
Select variants.
Note
Any changes you make will display in real time in the process graph. Any changes you've made to the process model since you created the target model will be discarded. While you’re modifying an asset, the Edit mode button is disabled for other users. If another user opens the asset in View mode, they’ll see a message indicating that you’re currently editing this asset.
Changing the metrics displayed in the process model
 |
Note
The icon for the metric switcher varies according to the metric that is currently selected. If Thoughput Time is selected, for example, a stopwatch icon displays.
Click the metrics icon in the upper left corner to open the metric switcher.
Select the metric you want to use from the dropdown.
The metric displayed on the edges and events within the process model and the units used are updated automatically.
