Creating custom transformations
For custom object types and event types, and for custom attributes and relationships that you extend Celonis object types with, you need to build SQL transformations to map the relevant data extracted from your business system into the Celonis database tables. You’ll also need to do this for the Celonis object types and event types for your enabled processes if your source system data isn’t covered by the supplied transformations.
Data extractions and transformations for object-centric process mining has an overview of how the transformations for object-centric process mining work, where they are stored in the OCPM Data Pool, and the naming convention for the tables in the Celonis database.
Tip
Before you start working with custom object types, event types, relationships, and transformations, we recommend you complete the Celonis Academy training track Implement Object-Centric Process Mining, which teaches you how to model objects and events. The course OCPM in Action - Build Object-Centric Data Models (2 hours) has step by step examples for you to work through.
You can only create a transformation for an object type or event type after you’ve created the OCPM Data Pool and connected it to at least one source system. It’s best to also extract your data before you start creating the transformations, so that you can preview the transformations with your data to make sure they are working. For the steps to provision the OCPM Data Pool, create a data connection, and extract your data, see Quickstart: Extract and transform your data into objects and events.
What your transformation contains
Your transformation can include scripts in these categories. You can view and create them all in the SQL editor:
Attribute scripts populate the tables of objects and events, which contain their attributes. For an object type, you populate its table using the data you’ve extracted from your source system tables. For an event type, you can choose to use the extracted business data, or use the transformed data from object type tables and change tables.
Change scripts populate the tables of changes to the attributes of objects. Change scripts aren't available for event types, as only object types have change tables. Change tables always have the same set of attributes. You can only populate a change table if you have extracted data that captures changes to your objects, such as a change log or audit log. If you don’t have this data, don’t add a change script.
Relationship scripts populate the relationship tables for the relationships between object types and event types. You only need a separate relationship script when there’s a many to many relationship that’s implemented on this object type or event type, so there’s a dedicated relationship table to fill. If the object type or event type doesn’t have any relationships like that, you won’t see a category in the SQL editor for these scripts. Relationships between objects and events explains how relationships work.
Tip
If you need to create transformations for many similar object types or event types, set up a transformation template. You can use local parameters and partial overwrites to customize the template for each transformation instance you create from it. The content from the template remains read-only, and it changes to match if you edit the template. Creating transformation templates has the instructions.
If you have a generated transformation script for a custom object type that you imported from a source system table, it’ll already map your source system data to the attributes generated from the columns. You’ll need to create a unique ID, and also map the data for any extra attributes you added when you created the object type. Then you can add any relationship scripts and change scripts that you want.
If you need to change part or all of a Celonis-supplied transformation, you can overwrite it with your own custom SQL query. For example, if you don’t have business data for a particular column, you can create a partial overwrite to set that attribute of the object to NULL. Or if you need to change table joins or add filtering for your data, you can create a full overwrite to replace the transformation for an object or event with your own SQL query.
A partial overwrite overwrites only the specified attributes of the Celonis catalog transformation for the object type or event type. Future updates to the Celonis catalog transformation will be picked up automatically, unless you overwrote a changed attribute. Partial overwrites take longer to process than full overwrites, but they’re easier to maintain.
A full overwrite overwrites the whole of the Celonis catalog transformation for the object type or event type. Future updates to the Celonis catalog transformation will need to be added to your script manually, and your transformation might stop working if you don’t keep it up to date. Full overwrites are quicker to process than partial overwrites, but you’ll need to check them whenever you apply a new Celonis catalog version.
What your transformation needs to do
The OCDM Schema (which stands for object-centric data model) is the database in the OCPM Data Pool that contains the tables with the transformed data for your objects and events. See Object-centric process mining database tables for more on the structure of the OCDM Schema.
For object types and changes, you map columns in your extracted business data to the attributes of the objects and changes. In the OCDM Schema, each row in the object type tables (with an o_ prefix) and the change tables (with a c_ prefix) holds a single object or change.
For event types, you can use the transformed data in the object type tables and change tables as a data source for your events, if you want to. Or you can map your extracted business data directly to the attributes of event types. Either way, the data goes into the event type tables (with an e_ prefix). Each row in the event type tables holds a single event.
For a one to one or one to many relationship, the relationship data is held in a foreign key column in the object type table or event type table. In this case, you populate the column as part of the attribute script. The column is named after the relationship, and you populate it with the ID column of the Celonis database table for the target object type.
For a many to many relationship where you’re implementing the transformation on this object type or event type, the relationship data is held in a relationship table with the relationship name. Populate this table with the ID of the object or event where this relationship is implemented (in the first column), and the ID of the target object (in the second column). Because a relationship table needs data from two object type or event type tables, you’ll need to use a left join (JOIN clause) to bring in data from both of the tables.
Be careful about creating dependencies between your transformations, because you can’t change the order that transformations run in. We run the transformations for object types first, followed by the transformations for multilink objects, which are special Celonis catalog objects that you can’t create yourself. Then we run the transformations for event types. You can’t control the order of the groups, or the order that transformations run within each group. So make sure that the transformations for object types only depend on your source system data, and don’t depend on events, or on objects built from other object types. The transformations for event types can depend on either your source system data or on built objects, but they can’t depend on events built from other event types.
Important
The SQL dialect you need to use in transformations for the Celonis Platform is Vertica SQL syntax. Using Vertica SQL syntax has Vertica recommendations for Celonis, and here's the official documentation: docs.vertica.com.
To keep the SQL transformations as generic as possible, the SQL editor in the Objects and Events environment only supports a subset of functions and operators of ANSI SQL, and not all Vertica functions are enabled. See Supported functions for object-centric transformations for the list of supported functions that you can use. It's different to the list for case-centric transformations. The topic includes advice on how to replace Vertica-specific functions with suitable alternatives.
Creating your transformation
Follow these steps to use the SQL editor to create a custom transformation or overwrite a Celonis transformation. In the instructions, we’ll assume that you’ve extracted the data from your source system into the OCPM Data Pool. If you have any problems, check the solutions in Troubleshooting transformations.
Tip
If you have just generated a transformation script for a custom object type that you imported from a source system table, it’ll be displayed in the SQL editor already. You can skip down to step 8 to see how to create the ID and map any extra attributes that you added - Creating IDs for objects and events tells you what to put in the object ID. Make sure you save the transformation when you’re finished.
From the Celonis navigation bar, select Data > Objects and Events.
To start with an object type or event type that needs a transformation, select Objects or Events in the Objects and Events navigation panel. From here, you can search and browse your object types or event types.
Select any object type or event type to see its details.
Click the Transformations icon to see the list of the transformations that the object type or event type already has.
Select the transformation you want to edit, or click Add to add a new transformation. If the object type or event type doesn’t have any transformations yet, click Add Transformations to get started.

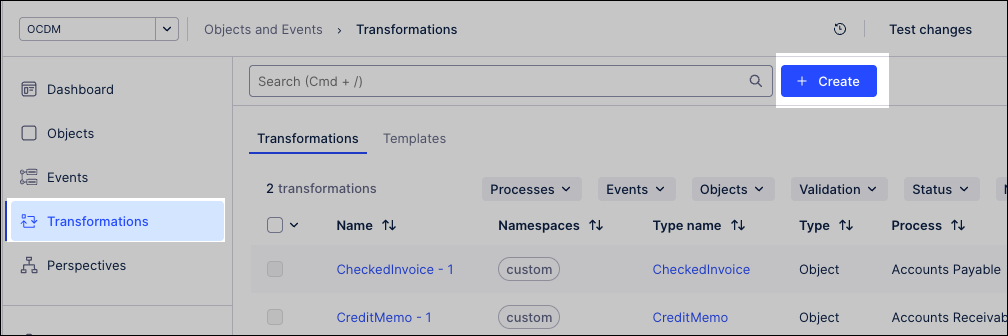

To start with the full list of transformations, select Transformations in the Objects and Events navigation panel. In the Transformations tab, you can search the list, sort it, and filter it by namespace (Celonis or custom), object type or event type, data source, and whether overwrites are present. Click Create transformation to add a new transformation, then select the radio button for Objects if the transformation is for an object type, or Events if it’s for an event type.
Select New to start a standalone transformation, or Template to base the transformation on a template. Creating transformation templates has the instructions to make a template. You can see the available templates in the Templates tab.
In the SQL editor, click the name of the transformation if you want to edit it. For a Celonis transformation, you can’t change the name. For a custom transformation, we’ve generated a unique name using the name of the data source, a unique number, and the name of the template if you used one.

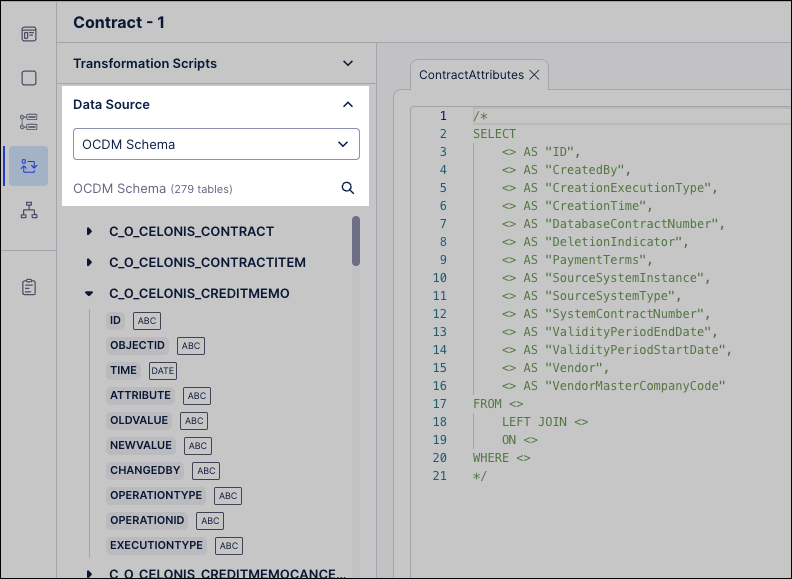

In the Data source section of the editor, select the data source for the business data that’s being transformed. Our default is the first listed data source that isn’t either the global connection or the OCDM Schema.
Tip
For event types, it's best practice to use the transformed data from the object type and change tables as the data for creating events. This data is in the OCDM Schema. It's also possible to use your extracted business data as the data source, like with object types. Using the transformed data is the recommended approach, though, because it makes event to object relationships and event attributes system agnostic and easier to debug.

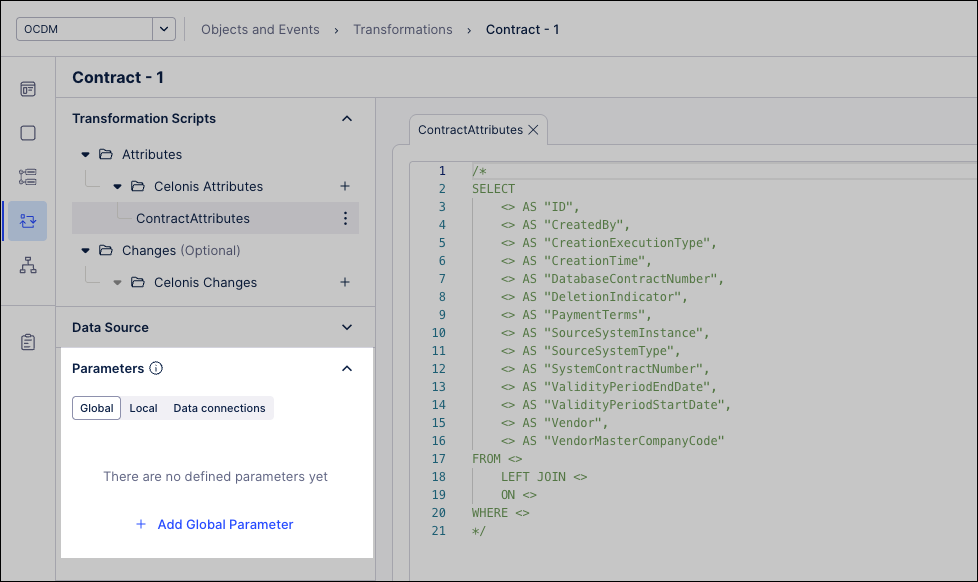

In the Parameters section of the editor, fill in the correct values for any local parameters that are present, such as the source system name for your data source. If you’re creating a transformation from scratch, there won’t be any local parameters here yet, but you can add them when you create scripts.
If you need to overwrite all or part of a Celonis transformation or the template for a transformation instance, here’s how to create an overwrite script:
Click the context menu (the three vertical dots) by the name of the transformation script in the left navigation, and select Partial overwrite or Full overwrite. For a transformation template, you can only create a partial overwrite.
For a partial overwrite, choose the items you want to overwrite. You can only have one overwrite script for each transformation script, so choose all of the attributes you want to overwrite.
Click Create Overwrite to create the overwrite script.
You can only have one overwrite for each type of script (so one each for attributes, relationships, and changes). If you create a second overwrite script in the same category, it'll replace your original overwrite.
Tip
You don't need to create an overwrite script for a Celonis transformation if:
There's a suitable local parameter in the Celonis script that you can change, such as the source system name. In that case, change the value and it'll be included when you publish the transformations.
You don't need to use this object type or event type at all, or you don’t have data for it, or you're going to build it with data from a set of transformations for another source system. In that case, disable the whole transformation using the toggle next to its name in the lists in the Objects and Events environment. You can re-enable the transformation at any time if you do need it in the future. Be aware that if you disable a transformation that you previously ran, the data for that object type or event type is removed from the table when you run the data job.
To create a new custom script for attributes, relationships, or changes, click the plus sign next to any script category in the left navigation. Type a name for the script and select the check button to create it. If you’re working with a transformation instance created from a template, you can’t add scripts that don’t exist in the original template.
Important
If you’re populating custom attributes or relationships that you’ve added to a Celonis object type, each extension script needs to handle all of the custom attributes and relationships that you added for the object type. You can’t use one extension script to populate one custom attribute, and another to populate a second custom attribute.
You can use different extension scripts for data from different source systems - for example, if you have contracts in two different source systems. But you can’t have more than one extension script contributing to the same instance of the object - so for a contract, you couldn’t populate the discount from one source system, and the name of the signatory from another. Each extension script must cover all the custom attributes and relationships for the Contract object type.

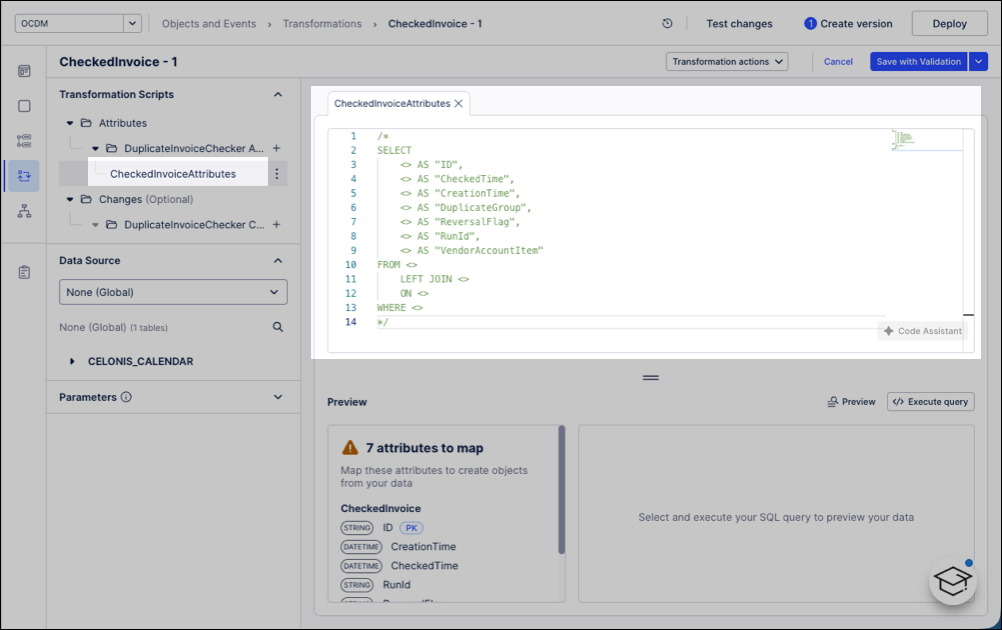

Each custom script or overwrite script that you create appears in a new tab, with a pregenerated suggestion that you can use to help build your SQL statement. In each script, you need to build a SELECT statement that transforms the columns from the source table containing the data, into the columns of your object type table, event type table, change table, or relationship table. Here’s some tips to help you use the SQL editor:
The pregenerated suggestion includes the attributes you need to map for this object type, event type, relationship, or change table. To use the suggestion, remove the comment markings at the beginning (/*) and end (*/).

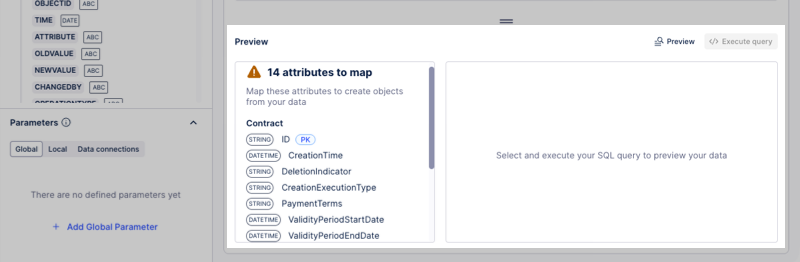

We show you the attributes that you still need to map in the Preview window along with their data types. A black key symbol means the attribute is the primary key for the table, and a white key symbol means the attribute is a foreign key for a relationship.
If you find one or more attributes that you didn’t model but would be useful to have, you can add them now. Select the Add attributes button in the preview pane in the SQL editor to open a new window. Click Add to add each new attribute, name it, and pick a data type. When you save your new attributes, we’ll update the object type or event type, and warn you if other transformations for it besides the one you’re editing might be affected by your changes.
The IDs you use in the ID field for objects and events must be unique, otherwise you might end up with inaccurate results for metrics and KPIs. Creating IDs for objects and events tells you how to create unique and high-performance IDs for objects and events.
Not all Vertica functions are enabled for transformations. See Supported functions for object-centric transformations for the list of supported functions that you can use. It's different to the list for case-centric transformations.
Use the Data Source explorer in the left navigation pane to search for a table in your selected data source, and see its columns. When you hover over a column name you’ll see an Insert button - click it to add the column to your script.
For event types, the OCDM Schema is available as a data source in the Data Source explorer if you want to use the transformed data from the object type and change tables. Or you can populate an event type table using your extracted business data directly.
You can type ahead to get autocomplete options for table and column names from your selected data source. You don’t need to specify the schema in your script.
You can use NULL in place of a data source column name if you don’t want to map a table attribute right now, or at all.
Use double quotes around column names from a source system data table, so that any spaces, special characters, and reserved words get handled correctly. You shouldn’t usually need to quote column names in Celonis database tables, unless they’re reserved words (for example, “Time”).
To create and use local parameters in your script, select Parameters in the left navigation pane. Click the + button to add a new key-value pair, and the check mark to save it. When you hover over a parameter name you’ll see an Insert button - click it to add the parameter to your script. The parameters are local to your script and don’t need to be unique.
To materialize common table expressions, click the context menu (the three vertical dots) next to a script name in the left navigation pane, and select Advanced Options. Click the Enable materialization slider then the Apply button. Now you can create temporary result sets that you can reference as often as you need.
Click the Save Script button to save and validate an individual script at any time.
Click the Preview Script button to run your SQL query against a sample of your real data from the data source, and check that the attributes are mapped as you expect. If you don't see any data, check that you've run the transformations to populate the tables in the environment you're working in. For example, test:ocpm-data-job creates objects and events in the development environment. See Data extractions and transformations for object-centric process mining for more on this.
If you need to rename or delete a custom script you already made, click the context menu (the three vertical dots) and select Rename or Delete.
To save your transformation, choose Save with validation if you've finished working on it, or Save if you haven't finished working on it.
If you choose Save with validation, we’ll validate your scripts to check the SQL for syntax errors and semantics errors. If a query doesn't pass validation, you can choose to save the transformation anyway, and go back later to fix the errors.
If you choose Save, we'll save the transformation without validating it. You can find it in the list of transformations and finish it later.
In the list of transformations, you can check which ones have passed validation, failed validation, or not been validated at all yet. We automatically disable transformations that haven't been validated and transformations that have failed validation, so they won't run as part of your data jobs.
Select Cancel or use the breadcrumbs to exit the SQL editor and go back to the Objects and Events interface.
Select Publish > Publish to development to publish your new or edited transformation scripts to the development environment.
When you publish your transformations, Celonis creates complete transformations, using your scripts as the core of them, to populate the tables in the Celonis database in the OCPM Data Pool. The transformations are stored in the data job test:ocpm-data-job when you publish to the development environment, and in ocpm-data-job when you publish to the production environment.
The naming convention for the transformations includes the type of transformation, the namespace (Celonis or custom), and the name of the target object type, event type, relationship or change table.
If you create a partial or full overwrite for a Celonis transformation, your custom SQL is joined to or replaces the Celonis transformation. You won’t see it listed separately in the data job.
If you create an extension to a Celonis transformation to populate custom attributes or relationships that you added to the Celonis object, your custom SQL is listed separately in the data job. The name of these transformations includes FIELD_EXTENSION.
Running transformations tells you how to view and run the transformation scripts.
