Process Explorer basic configuration

To configure a basic Process Explorer, you must define the event logs you want to visualize in the component. Ensure that prior to creating a Process Explorer component you have defined the event logs in the eventLogsMetadata section of the Knowledge Model.

Attribute

Required

Type

Description

eventLog

true

Event Logs in Knowledge Model

References Event Log ID’s defined in the eventLogsMetadata section of the Knowledge Model.

id

true

String

Defines a unique identifier for the field. If not defined, an id is generated automatically.

order

true

Integer

Defines the order in which the event logs are visualized. If not defined, the order is generated automatically.

Single event log

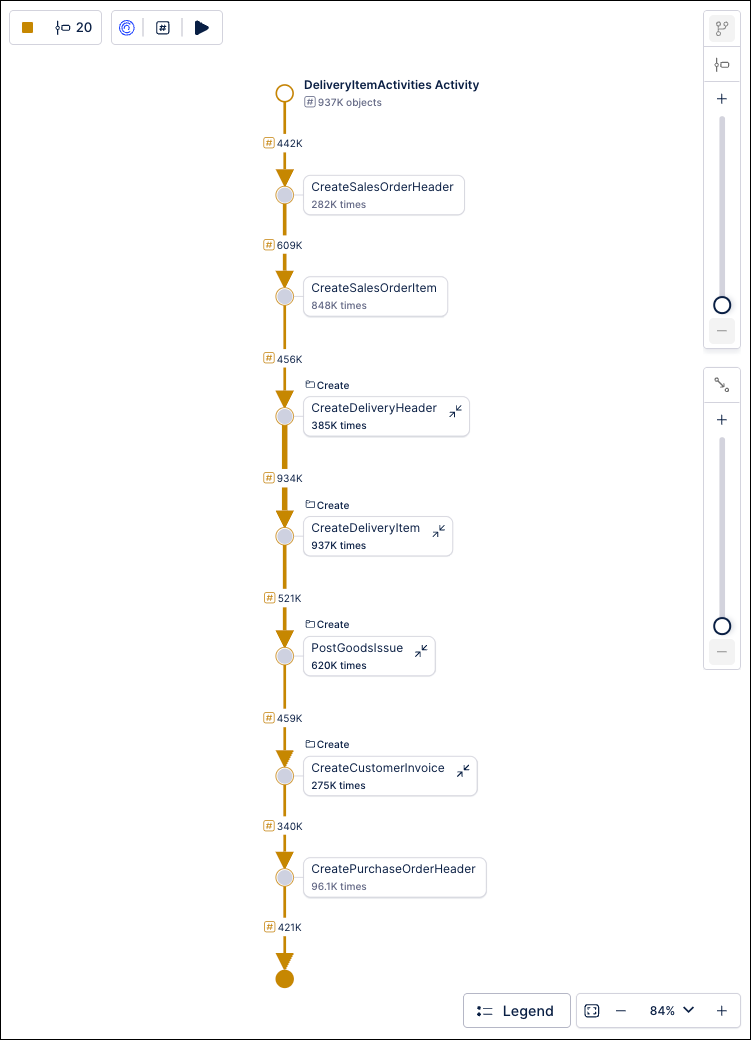

The following diagram is an example of a single event log for Process Explorer:


Single Event Log - Component Configuration

Visual Editor View


YAML Configuration

id: process-explorer-e6834feb-5710-4c8f-a74f-01b18d13b195
type: process-explorer
settings:
 eventLogs:
   - eventLog: O2C_EVENTLOG
     id: 714ddb62-9753-4380-8d0d-b2ef59501124
     order: 100

Single Event Log - Knowledge Model Configuration

Visual Editor View


YAML Configuration

eventLogsMetadata:
     eventLogs:
          - id: EL_ACTIVITY_TABLE__ACTIVITY_EN
            displayName: Order Management
            pql: "ACTIVITY_TABLE"."ACTIVITY_EN"

Multi event log

Multiple processes can be visualized together in the Process Explorer. The event logs appear next to each other with transition lines that connect the processes.

Note

Event logs in the process explorer are visualized as independent processes with transition lines if the underlying data model is a Case-Centric data model.

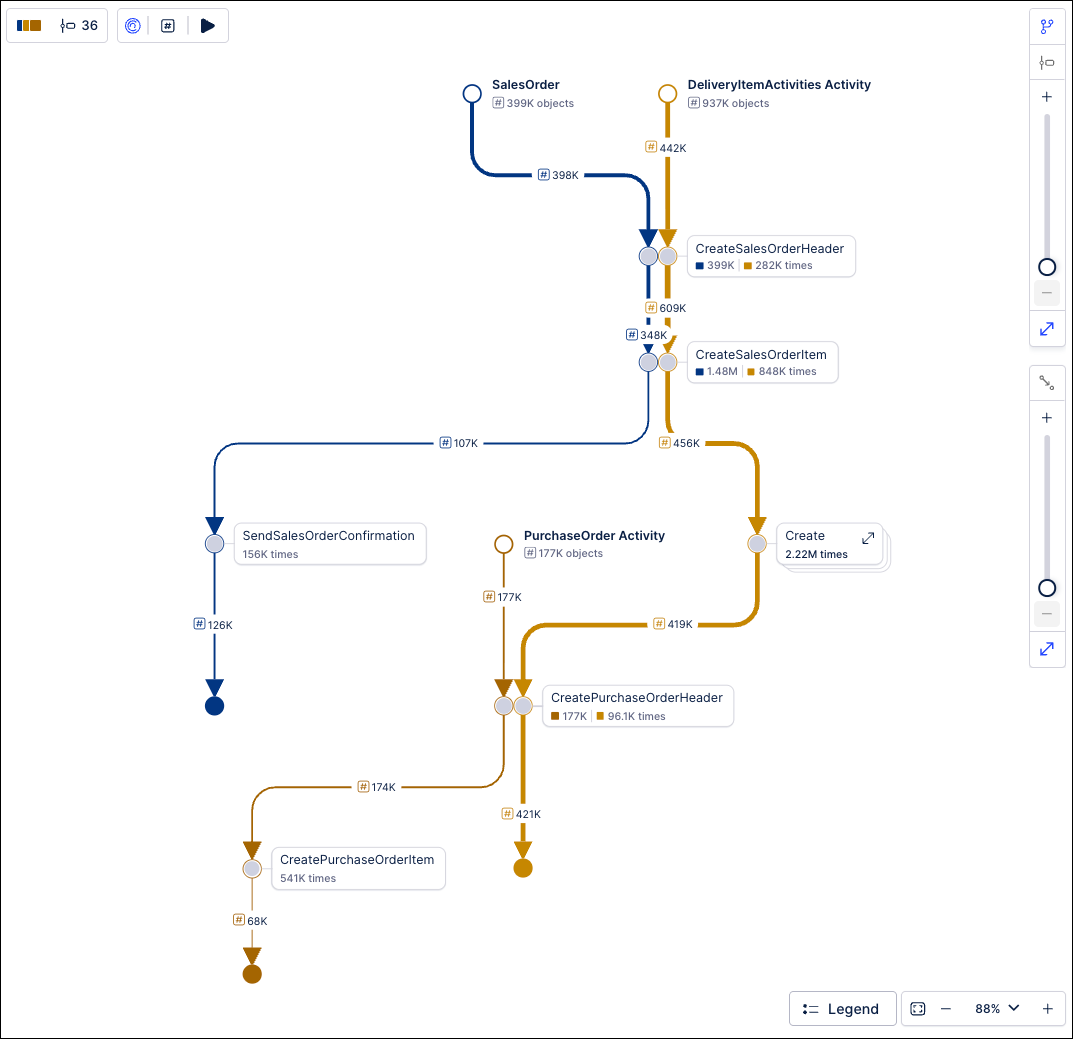

The following diagram is an example of multiple event logs for the Process Explorer:

Transitions for Multiple Event Logs

Connections between two processes are known as "transitions". Transitions can be added automatically, based on the select event logs displayed above, or manually customized.

To manually customize transitions, use the following widget configurations.

Attribute

Required

Type

Description

Transition

false

String

References Transition IDs defined in the eventLogsMetadata section of the Knowledge Model.

id

true

String

Defines a unique identifier for the field. If not defined, this is automatically generated.

And for a video overview:



Multiple Event Logs - Component Configuration

Visual Editor View


YAML Configuration

id: process-explorer-e6834feb-5710-4c8f-a74f-01b18d13b195
type: process-explorer
settings:
 eventLogs:
   - eventLog: O2C_EVENTLOG
     id: O2C1
     order: 100
   - eventLog: P2P_EVENTLOG
     id: P2P2
     order: 200
 transitions:
   - transition: Transition_1
     id: 6b8b47c5-747d-4215-b5cf-bcc4b28d82b7
     order: 100
   - transition: Transition_2
     id: fb8a9d6b-6fdc-4300-9075-d033bf2cd890
     order: 200

Multiple Event Logs - Knowledge Model Configuration

Visual Editor View


YAML Configuration

eventLogsMetadata:
     eventLogs:
          - id: O2C_EVENTLOG
            displayName: Order To Case
            pql: '"_CEL_O2C_ACTIVITIES"."ACTIVITY_EN"'
          - id: P2P_EVENTLOG
            displayName: Procure to Pay
            pql: '"_MEL_EKPO_ACTIVITIES"."ACTIVITY_EN"'
     transitions:
         - id: Transition_1
           displayName: O2C to P2P
           firstEventLogId: O2C_EVENTLOG
           secondEventLogId: P2P_EVENTLOG
           type: INTERLEAVED
         - id: Transition_2
           displayName: P2P to O2O
           firstEventLogId: P2P_EVENTLOG
           secondEventLogId: O2C_EVENTLOG
           type: INTERLEAVED
