Webhooks
Custom Webhook

To call a third party webhook (outgoing webhooks) use one of the HTTP modules.

Any application that is connected to the Internet and allows the sending of HTTP requests can send webhooks to Celonis. To connect such an app to Celonis, add the Webhooks > Custom Webhook instant trigger module to your Action Flow. When setting this trigger, click on the Add button next to the Webhook field and enter a name for the new webhook.

Determine the webhook's data structure

Once you create a webhook, you will see a unique URL that Celonis will listen for. The data sent to this address is first validated and then passed on for processing in the Action Flow. To enable the option to map items outputted from the webhook, Celonis needs to determine the data structure of the incoming payload so the other modules know what to expect from the webhook. That's why Celonis will ask you to send sample data to the displayed address:


There are two ways to supply the sample data:

  • Generate a webhook in the given service/app where you have registered the webhook. Make a certain change in the service/app that will make the service/app call the webhook, like removing a file, etc.

  • Send the sample data via the HTTP > Make a request module.

If you would like to use the second option, follow these steps:

  1. Create a new Action Flow with the HTTP > Make a request module and set it up like this:

    URL

    URL of the webhook

    Method

    POST

    Body type

    Raw

    Content type

    JSON (application/json)

    Request content

    raw JSON expected in the webhook

  2. Have both Action Flows (the one with the HTTP module and the one with the Webhooks module) open in separate browser tabs/windows. Open the Action Flow with the Webhooks module and click the "Redetermine data structure" button to make Celonis listen for the data (you don't have to unlink other modules, the data won't be used anywhere):

  3. Switch to the Action Flow with the HTTP module and run it.

  4. Switch back to the Action Flow with the Webhooks module. If everything went right, the data structure of the webhook should be determined and you should see a message "Successfully determined":

  5. Click OK to save the data structure.

  6. The webhook's items should be now available in the mapping panel for mapping to fields in the configuration of modules connected after the Webhooks module:

Queue

The Action Flow listens for the webhook data. If the Action Flow is not active, the data is stored in the queue. Once you activate the Action Flow, all bundles waiting in the queue will be processed sequentially.

Supported Incoming Data Formats

Celonis supports 3 formats of incoming data - Query String, Form Data and JSON. Celonis validates all incoming data against the selected data structure and then depending on the settings of the Action Flow, the data is either stored in the queue for processing or processed immediately.

If any part of the data does not pass the validation, Celonis returns a '400 HTTP' status code and specifies in the body of the HTTP response the reason why the incoming data failed the validation checks. If the validation of the incoming data succeeds, Celonis returns a '200 Accepted' status in response.

Query String
               GET https://hook.integromat.com/yourunique32characterslongstring?name=Celonis&job=automate


Form Data
               POST https://hook.integromat.com/yourunique32characterslongstring
Content-Type: application/x-www-form-urlencoded

name=Integrobot&job=automate


Multipart
               POST https://hook.integromat.com/yourunique32characterslongstring
Content-Type: multipart/form-data; boundary=---generatedboundary

---generatedboundary
Content-Disposition: form-data; name="file"; filename="file.txt"
Content-Type: text/plain

Content of file.txt
---generatedboundary
Content-Disposition: form-data; name="name"

Celonis
---generatedboundary



In order to receive files encoded with multipart/form-data, it is necessary to configure a data structure with a collection type field that contains the nested fields name, mime and data. The field name is a text type and contains the name of the uploaded file. The mime is a text type and contains a file in the [MIME] format (https://en.wikipedia.org/wiki/MIME). The field data is a buffer type and contains binary data for the file being transferred.

JSON
               POST https://hook.integromat.com/yourunique32characterslongstring
Content-Type: application/json

{"name": "Integrobot", "job": "automate"}



PRO TIP: If you wish to access the original JSON, open the webhook's settings:


and enable the JSON pass-through option:


Maximum allowed webhook's payload size (Content-Length) is 5 MB (5.242.880 bytes) regardless of the subscription tier.

Webhook headers

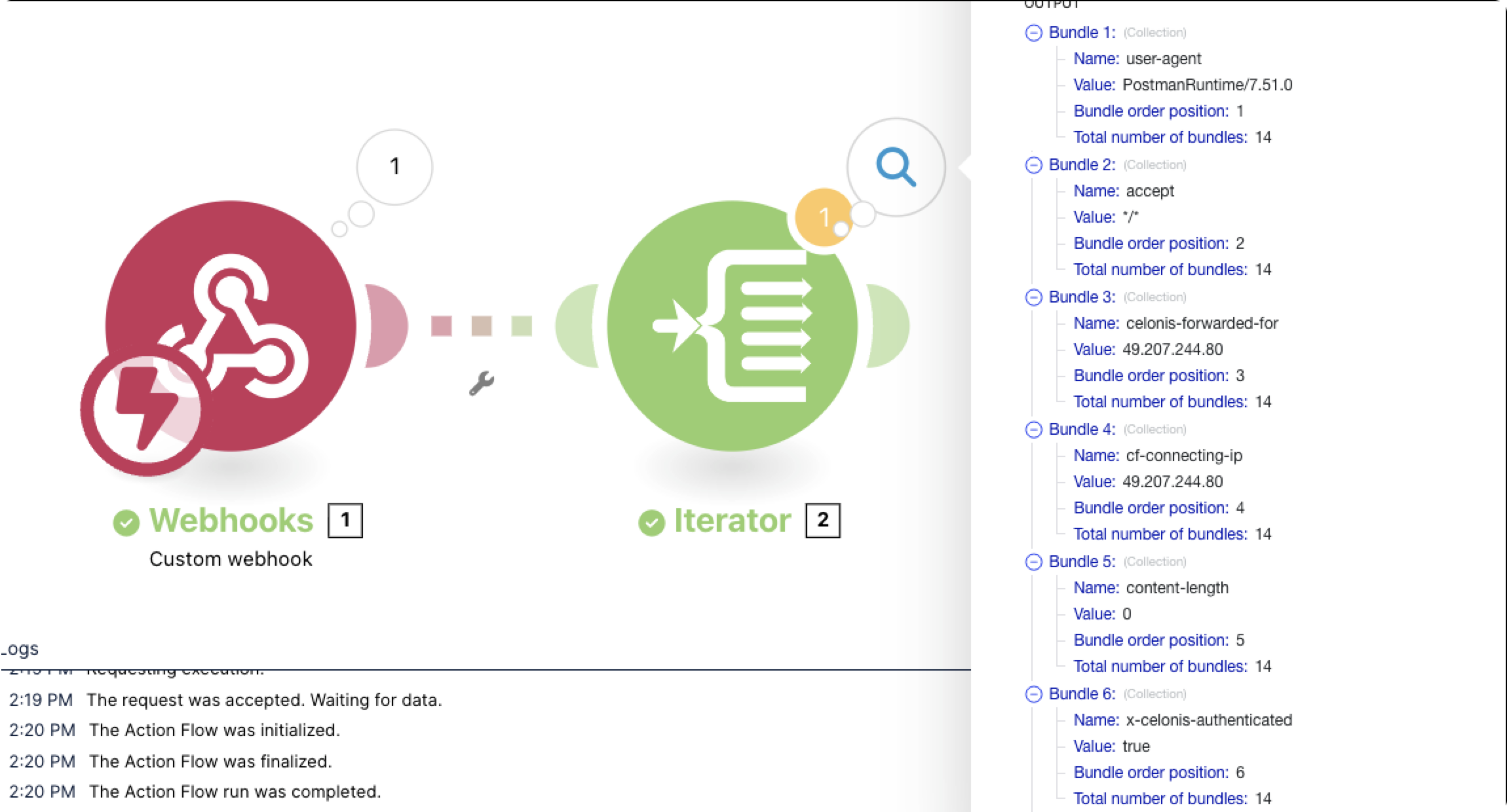

To access the webhook's headers, enable the Get request headers option in the webhook's setup:


You can then extract a particular header value with the combination of map() & get() functions. The example below shows a formula that extracts the value of the authorization header from the Headers[] array. The formula is used in a filter that compares the extracted value with the given text to pass only webhooks if there is a match.

See Mapping an array's element with a given key for further information on obtaining an array's element with a given key.

Responding to webhooks

The default response to a webhook call contains just a simple text, "Accepted" and the response is returned to the webhook's caller right away during the execution of the Custom Webhook module. You can easily test it like this:

  1. Place the Custom Webhook module in your Action Flow.

  2. Add a new webhook in the module's configuration.

  3. Copy the webhook's URL to your clipboard.

  4. Run the Action Flow - the Custom Webhook module should be waiting for the webhook call (see on the right)

  5. Open a new browser window, paste the copied URL in the address bar and press Enter.

  6. The Custom Webhook module will be triggered and the browser will display the following page:


These are default responses when the Action Flow does not contain the Webhook Response module:

HTTP status code

Body

Webhook accepted in the queue

200

Accepted

Webhook queue full

400

Queue is full.

If you wish to customize the webhook's response, employ the module Webhook Response. The configuration of the module contains two fields: Status and Body. The Status field should contain HTTP response status codes like 2xx for Success (e.g. 200 for OK), 3xx for Redirection (e.g. 307 for Temporary Redirect), 4xx for Client errors (e.g. 400 for Bad Request), etc. The Body field should contain anything that will be accepted by the webhook's call. It can be a simple text, HTML, XML, JSON, etc. It is advisable to set the Content-Type header to the corresponding mime type: text/plain for plain text, text/html for HTML, application/json for JSON, application/xml for XML, etc.

These are additional default responses when the Action Flow does contain the Webhook Response module:

HTTP status code

Body

Action Flow encounters an error

500

Action Flow failed to complete.

The timeout for sending a response is 40 seconds. If the response is not available within that period, Celonis returns a '200 Accepted' status.

HTML Response example

Configure the Webhook Response module as follows:

Status

2xx success HTTP status code, e.g. 200

Body

HTML code, e.g.:

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Thank you!</title>
</head>
<body>
Thank you, {{1.name}}, for your request!
</body>
</html>

Custom headers

Key

Content-type

Value

text/html


It will produce an HTML response that will be displayed like this in a web browser:

Redirect example

Configure the Webhook Response module as follows:

Status

3xx redirection HTTP status code, e.g. 303

Custom headers

Key

Location

Value

The URL you would like to redirect to.

Custom Mailhook

Please see the Custom Mailhook documentation.

Troubleshooting
Missing items in the mapping panel

If some items are missing in the mapping panel in the setup of the modules following the Webhooks > Custom Webhook module, click on the Webhooks > Custom Webhook module to open its setup and click on the "Re-determine data structure" button:


Then follow the steps described in the section Determine the webhook's data structure.
