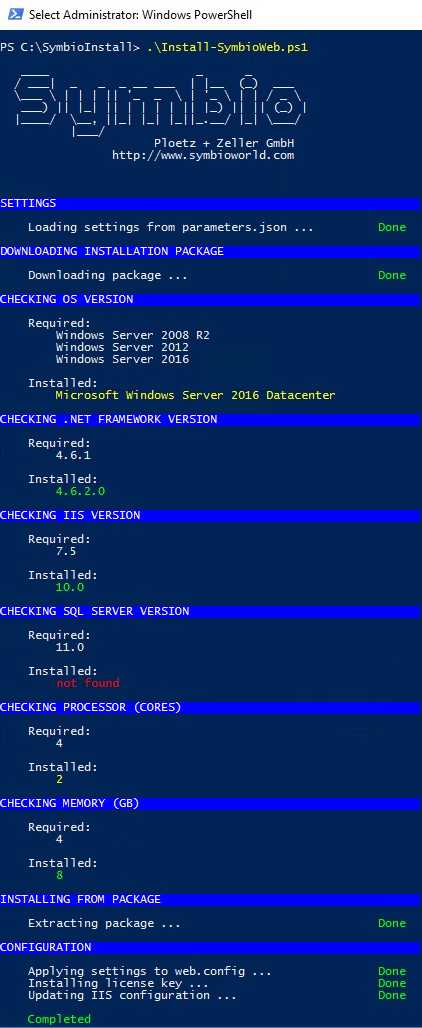

Scripted Installation

Celonis Process Management - allgemein

SourcePath

https://www.symbioworld.com/download/symbio/symbio-master.zip

The path to the installation files. Can be an URL to the installation package, a path to the local installation package or a path to a local folder containing a previously extracted installation package.

BaseTargetPath

C:\\SymbioWeb\\Test

Target directory for the Celonis Process Management application. Please note the double backslashes.

BaseBackupPath

C:\\Backups

Compressed backups of an instance are stored in this directory.

InstanceName

SymbioTest

The name of the Celonis Process Management instance. This name is used as a subfolder in the backup and destination path.

CertificatesPath

C:\\Certificates

The path to the SAML certificates. These are copied into the App\_Data directory.

LicenseKey

12345678

The license key for Celonis Process Management will be provided by our team. This license key will be added to the registry. Please also refer to server settings/license key chapter.

Celonis Process Management - Web.config

SYMBIO_STORAGE_SETTINGS

Database=Database;Server=MSSQLSERVER;Integrated Security=true;common.cachingenabled=true;common.objectcachingenabled=true;

common.tenant=Default;MultipleActiveResultSets=True;App=Symbio

This is the connection string of the MS SQL Server. Please adjust database name and SQL server accordingly. If you do not know the server name, use the following SQL query: SELECT @@SERVERNAME

Symbio.RestrictRelease WorkflowDatabase NameRegex

^sandbox-

In databases beginning with "sandbox-" no release cycle is available. These are the so called FreeDBs. This setting is disabled in the Web.config as per default.

PngRenderingServiceEndpunktUrl

https://localhost:1234/png

This parameter is required since Celonis Process Management 1807: The endpoint for the rendering service. Enter the URL configured in the rendering service here.

Celonis Process Management – IIS settings

Enabled

true

If set to „false", an existing WebSite is used.

SiteName

SymbioTest

Name of the WebSite in IIS. Can be left blank if InstanceName is equal to SiteName.

ManagedRuntimeVersion

v4.0

.NET Framework version which the application pool will use.

IdentityType

3

The application pool needs to run under a specific user account.

ApplicationName

Optional setting.

ApplicationPoolName

SymbioTest

Name of application pool. Should be named identically like the Celonis Process Management WebSite.

ApplicationPoolUser

User

User account which the application popl uses. Please use duplicate backslashes if domain is required., e.g. domain\\user.

ApplicationPoolPassword

Password

Password of the user account. Note: This password is stored in cleartext in the Parameter.json file. You can also set the password directly in the application pool or remove the password setting in the json file once the Celonis Process Management site is successsfully running.

Bindings

Celonis Process Management needs specific bindings where the Celonis Process Management site is to be opened in browser.

http

"Protocol": " http", "IPAddress": "*", "Port": 2111, "HostName":

"SymbioTest"

The default http port is "80". The host name can be "localhost" or a registered host name, such as example.symbioweb.com. HostName can be left blank.

https

https"Protocol": " https", "IPAddress": "*", "Port": 2112, "HostName": "SymbioTest", "CertificateHash": "c1b10a2635ab6cda3dc536863486a7ea0af1cb17"

The default https port is "443". The host name can be "localhost" or a registered host name, such as example.symbioweb.com. You can find the hash value for the SSL certificate in the IIS under Server Certificates. If the certificate was not found, it is possible that the first character is "corrupt". Please replace the first "corrupt" character manually in Notepad. HostName can be left blank.
